HAUS1 LOFTY

Technical Specification:

TRAILER:

255 cm WIDTH, 650-700-750 cm LENGTH, 400 cm HEIGHT, 3500 kg O2 CLASS TYPE APPROVAL CERTIFICATE PLATE

1. MAIN CHASSIS; 4 mm SPECIALLY SHAPED SHEET METAL.S235JR
2. MAIN CHASSIS PROFILE 40 X 60 X 2 mm
3. TORSION AXLE PROFILE 100 X 100 X 4 mm
4. REAR BUMPER 2 mm SPECIALLY SHAPED SHEET METAL.S235JR
5. FRONT FOREHEAD HAIR 1 mm SPECIALLY SHAPED DKP- CCRS
6. DRAWBAR HORIZONTAL 80 NPU VERTICAL 60 NPU
7. INDUSTRIAL PRIMER AND FINISHING PAINTED
8. SINGLE CHASSIS + BRAKED TORSITON AXLE E CERTIFIED 1750 kg
9. TIRES 185R 14C 8 PLY TL 102R/119AB
10. RIM 5.50 X 14 AUTOMOTIVE 4 BOLT TL
11. 3500 KG BRAKE COUPLING
12. LARGE TUBE WHEEL 60 mm COUPLING JACK
13. BALANCE JACKS WITH GALVANIZED APPARATUS
14. STOP LAMP SET AND DISTRIBUTION BOX 12 V 7 SOCKET
15. PARKING SIGNAL SET AND REAR WARNING LIGHTS IN ACCORDANCE WITH THE REGULATIONS WITH 3 M ARA

SUPERSTRUCTURE:

1. COMPUTER AIDED MANUFACTURING DRAWINGS AND STATIC CALCULATIONS ARE MADE IN ACCORDANCE WITH THE PROJECT.
2. SUPERSTRUCTURE SKELETON MANUFACTURING IS DONE WITH 60 MM WIDTH AND 0.8 MM GALVANIZED LIGHT STEEL WITH ROLLFORM MACHINES.

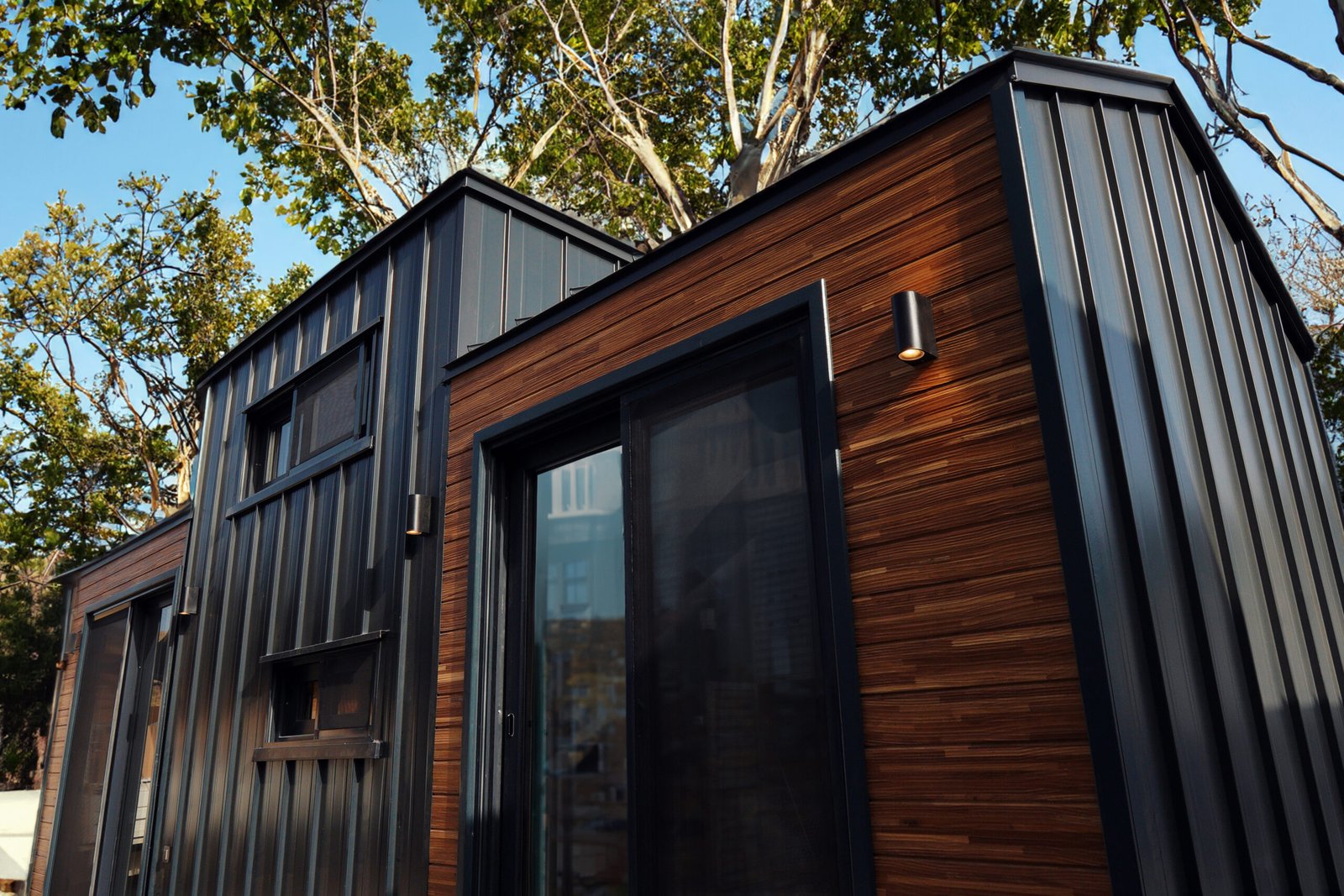

3. THE EXTERIOR IS PARTIALLY COVERED WITH STATIC PAINTED SEAM SHEET IN ACCORDANCE WITH THE DESIGN.
4. IROKO WALLPAPER, IMPORTED PINE THERMOWOOD, OR OPAQUE PAINTED OVEN-BAKED WALLPAPER CAN BE USED ON THE EXTERIOR WOODEN PARTS.
5. ROCKWOOL SOUND AND HEAT INSULATION IS APPLIED INSIDE THE STEEL SKELETON, MOISTURE BARRIER IS APPLIED BETWEEN THE OUTER LAYERS.
6. FOR THE INTERIOR, SOLID WALLPAPERING, PAINTED MDF WALLPAPERING, ETC. ARE MANUFACTURED ACCORDING TO THE DESIGN.
7. ELECTRICAL INSTALLATION IS LAYED WITH HALOGEN-FREE CABLES THROUGHOUT THE STEEL FRAMEWORK,

ELECTRICAL PANEL, LEAKAGE CURRENT RELAY AND IF NECESSARY LOW CURRENT LINES ARE PROCESSED.

8. FIXED LIGHTING (EXCEPT SPECIAL LAMPSHADES, FLOOR LAMPS, ETC.) CAN BE INSTALLED
9. CLEAN AND WASTE WATER PLUMBING IS APPLIED INSIDE THE FRAMEWORK.

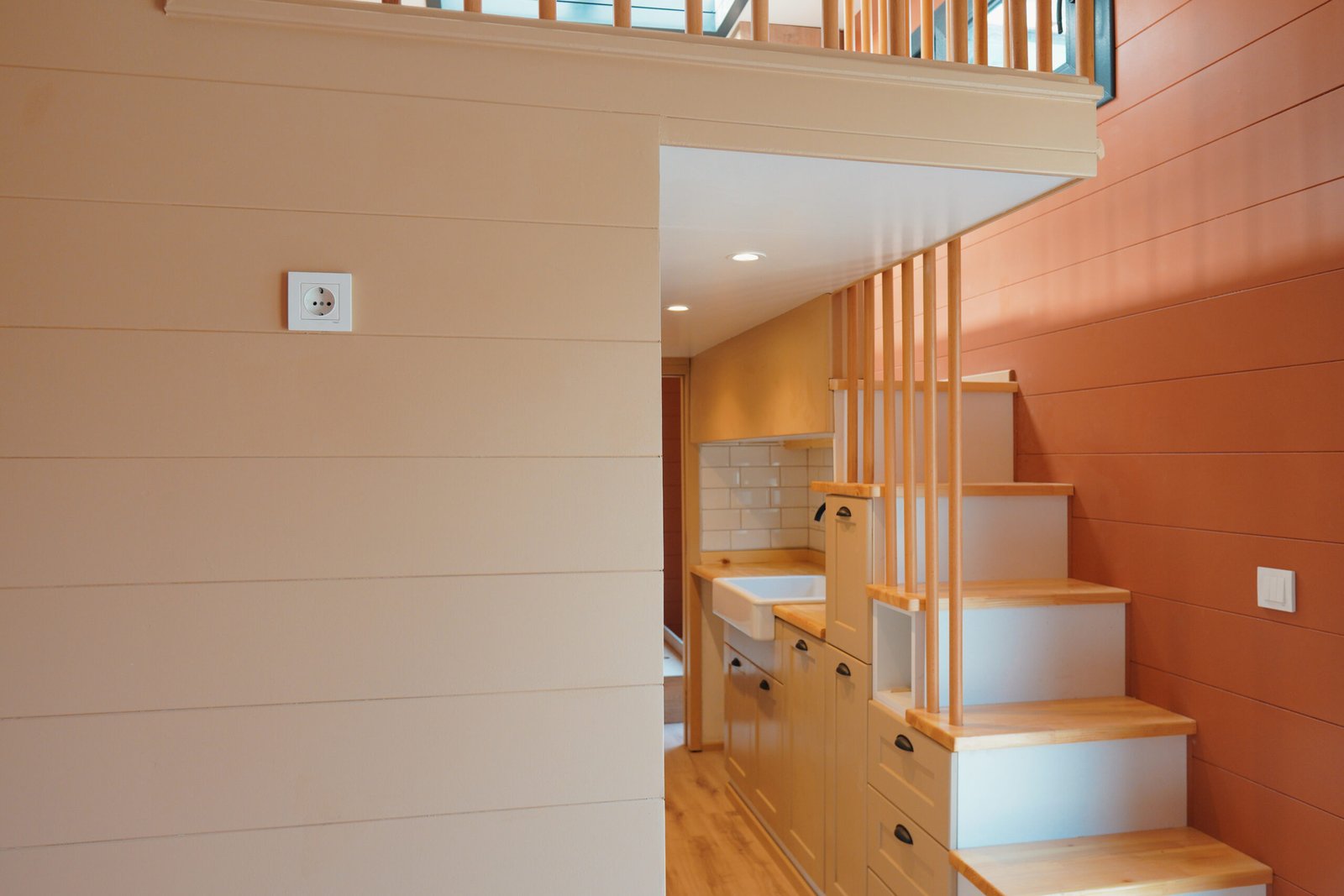

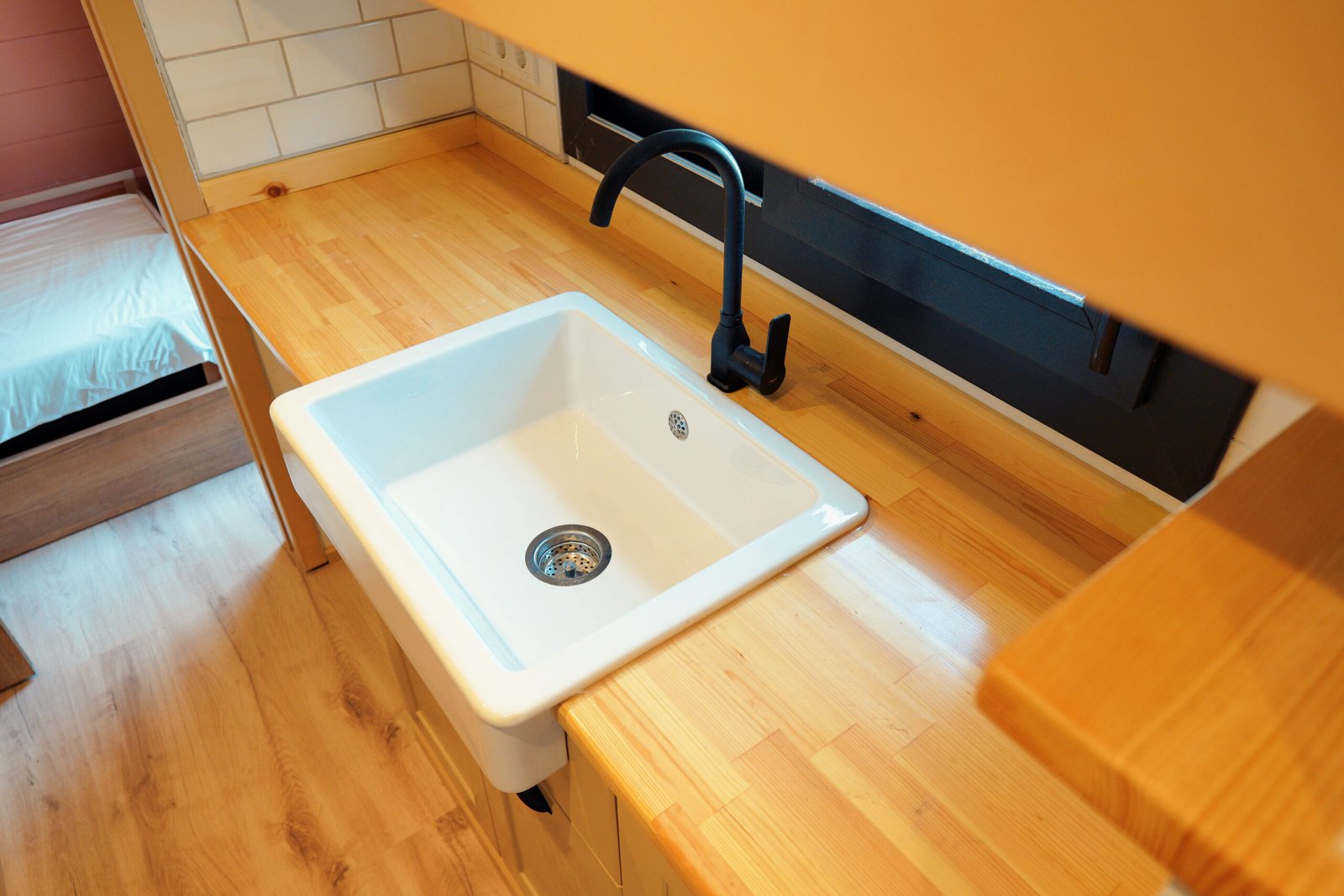

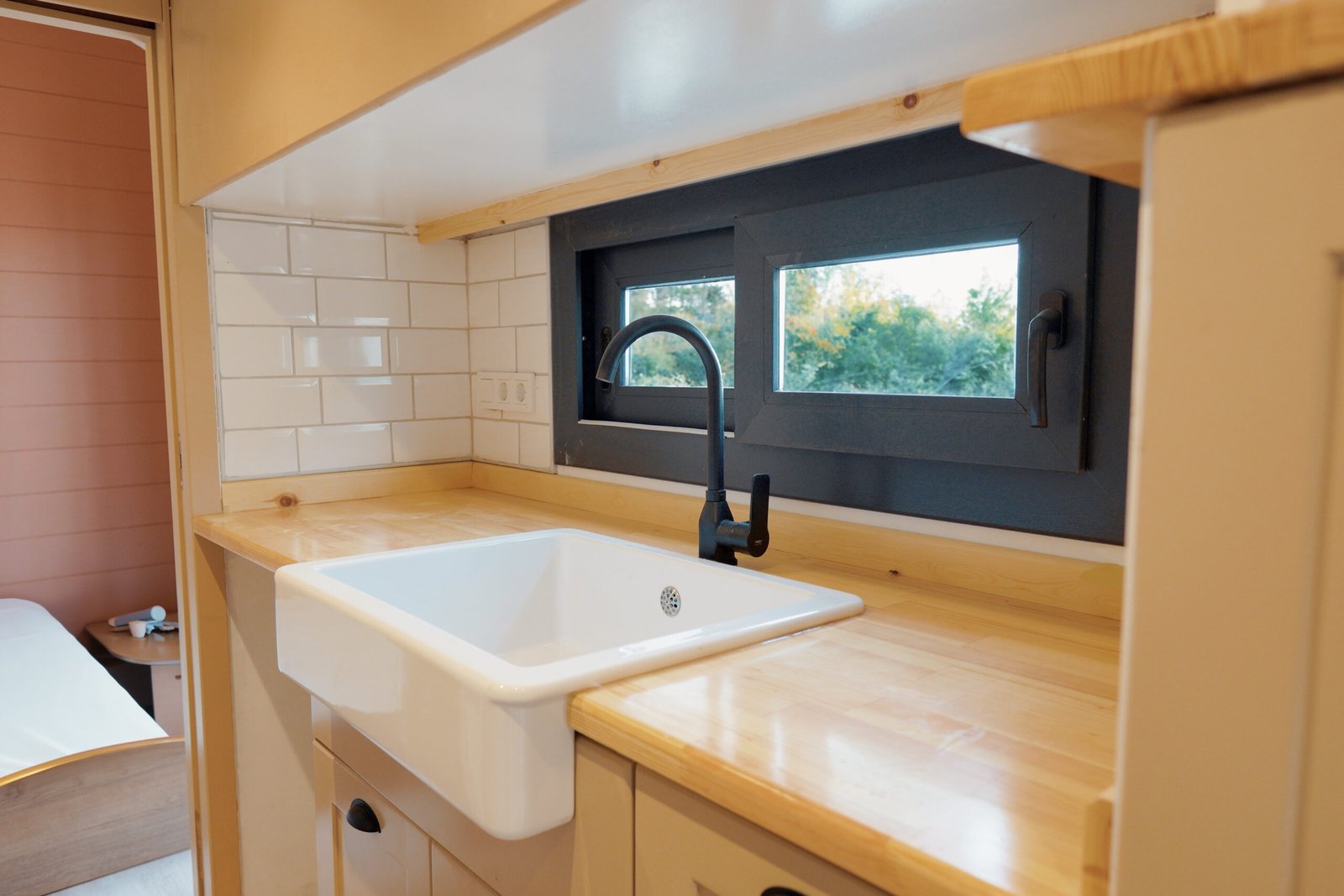

10. KITCHEN CABINETS ARE MANUFACTURED WITH MDFLAM BODY AND DOOR, THE COUNTERTOP IS MANUFACTURED WITH 30 mm SOLID PINE PANEL. CERAMIC SINK IS USED. SAMET BRAND ACCESSORIES ARE USED.

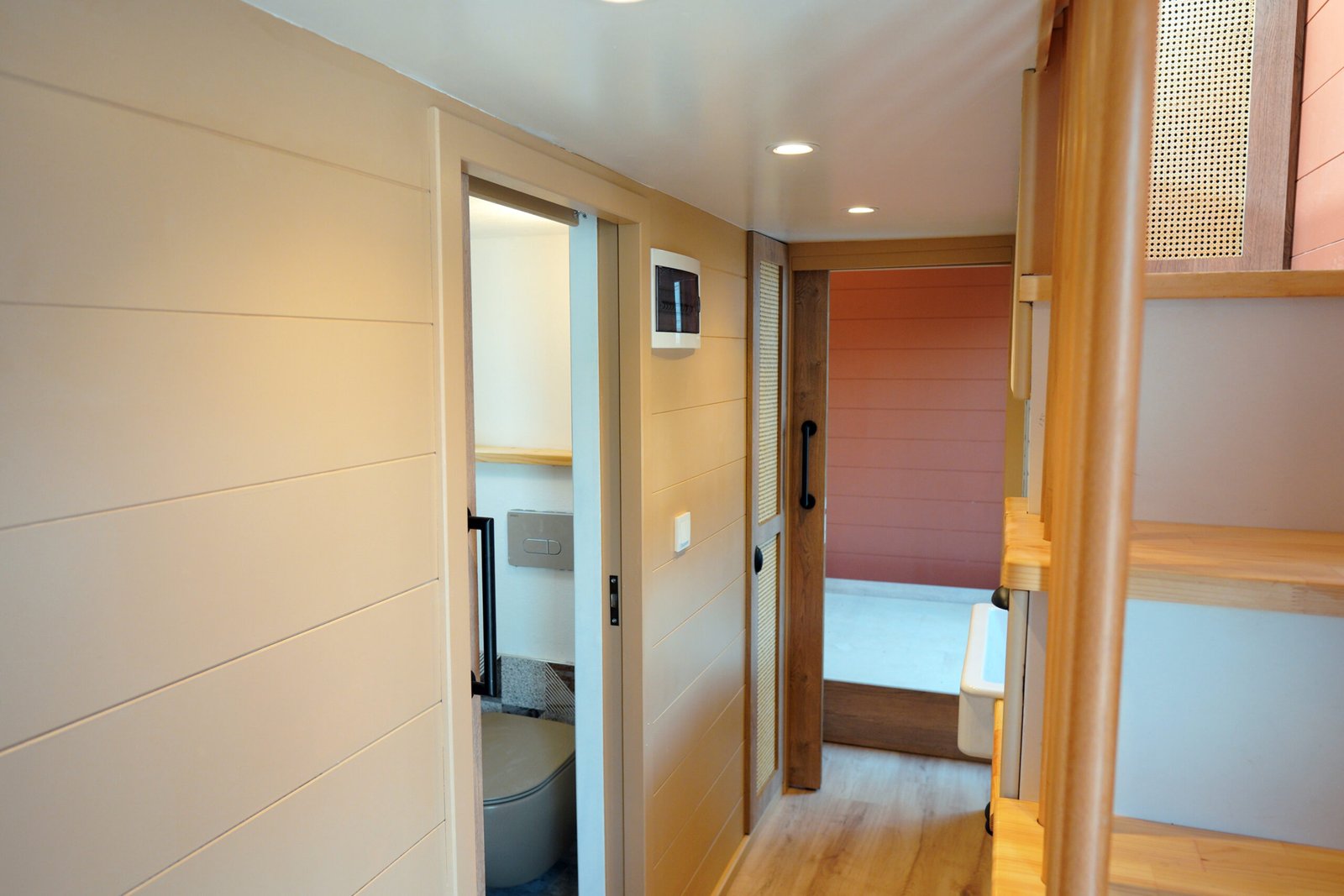

11. INTERIOR DOORS ARE SLIDING PANEL DOORS.

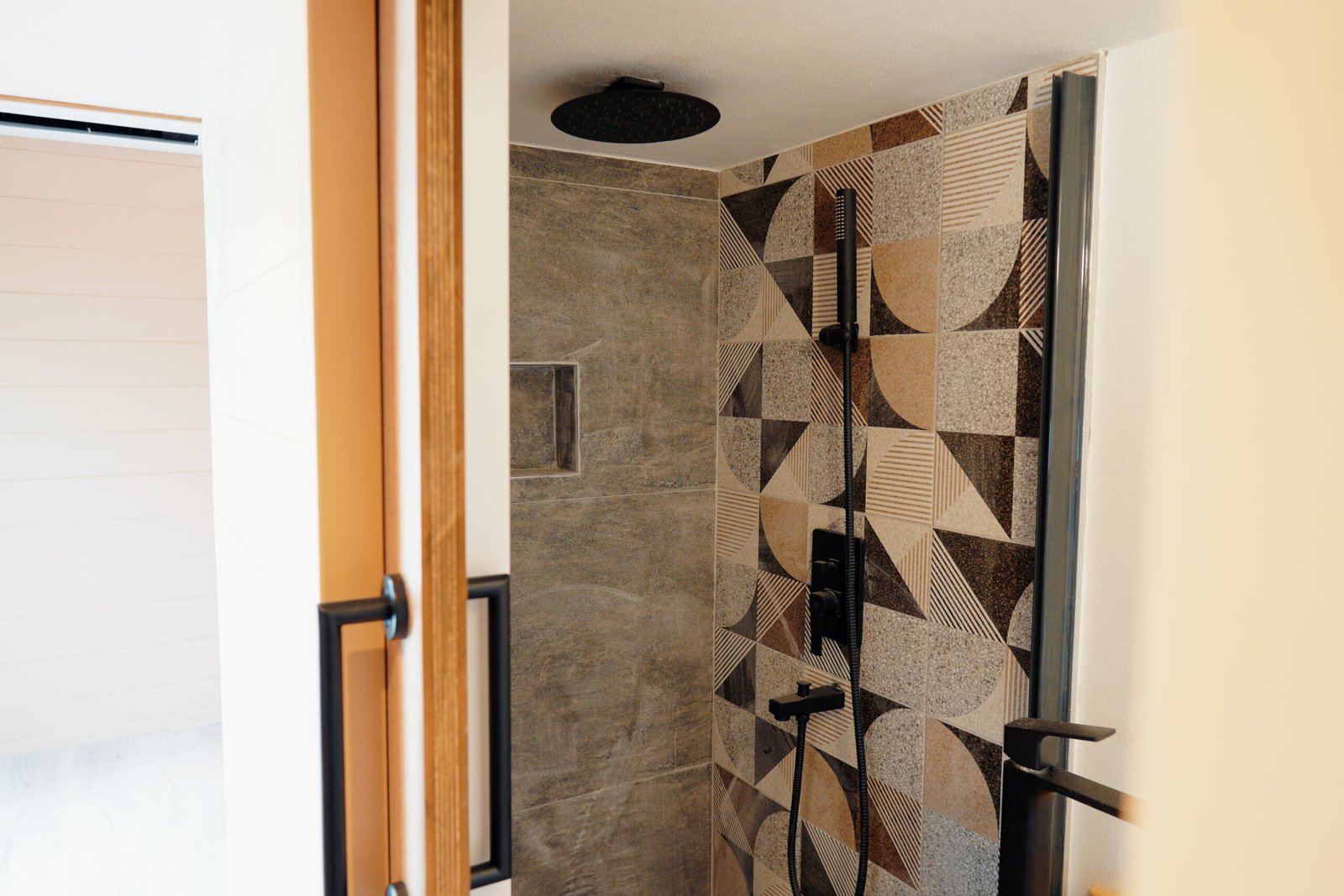

12. BATHROOM WALLS ARE MADE OF BOARDEX WITH MESH PLASTER, CERAMIC IS USED ON THE FLOOR AND SHOWER WALLS.

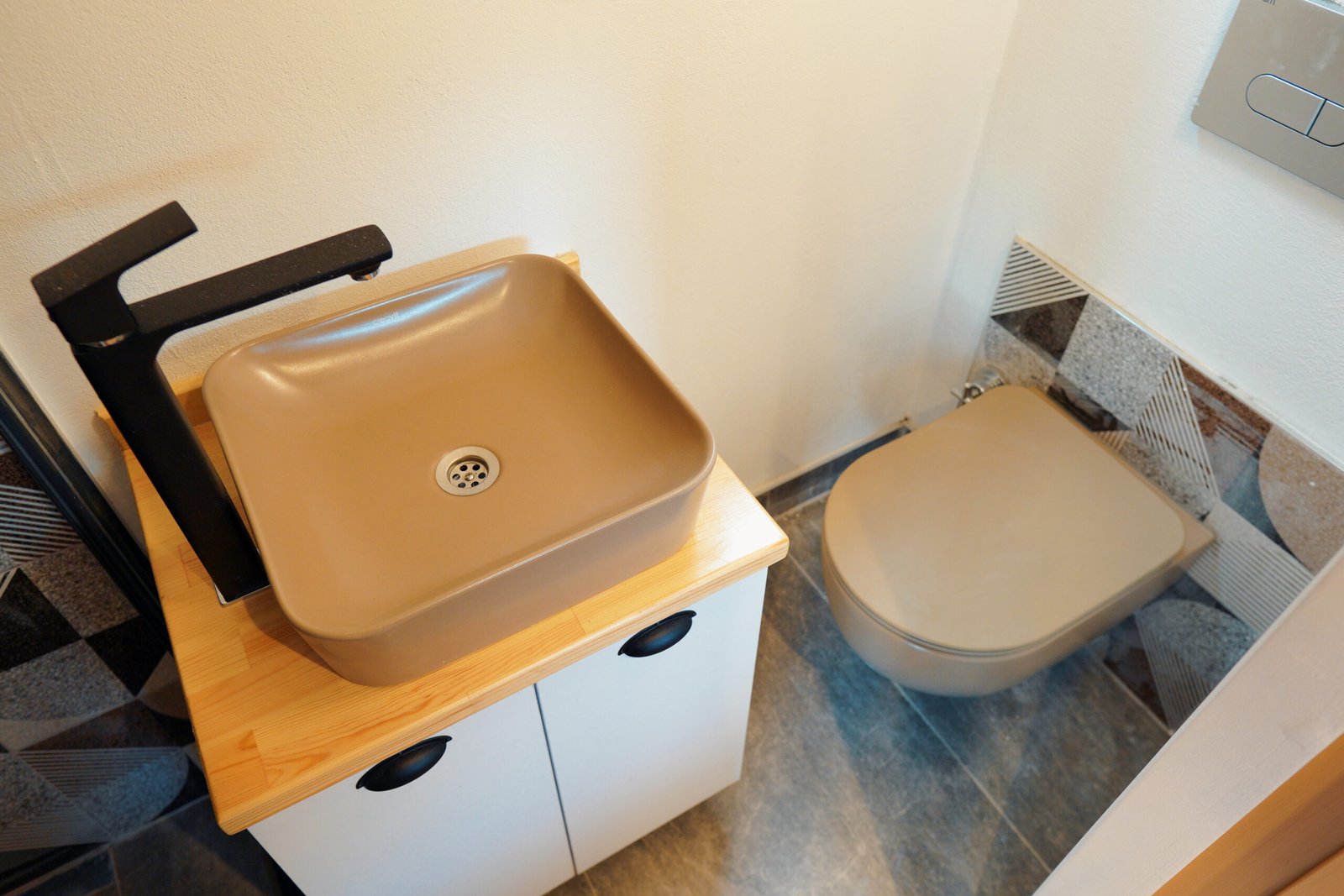

13. AS SANITARY WARE, BOCCHI BRAND WALL-HUNG WC, BOCCHI BRAND BOWL AND IKEA BRAND SINK ARE USED IN THE KITCHEN.
14. 1 MIRROR BATHROOM CABINET, WALL-HUNG TOILET, SHOWER SET ARE INSTALLED IN THE BATHROOM.

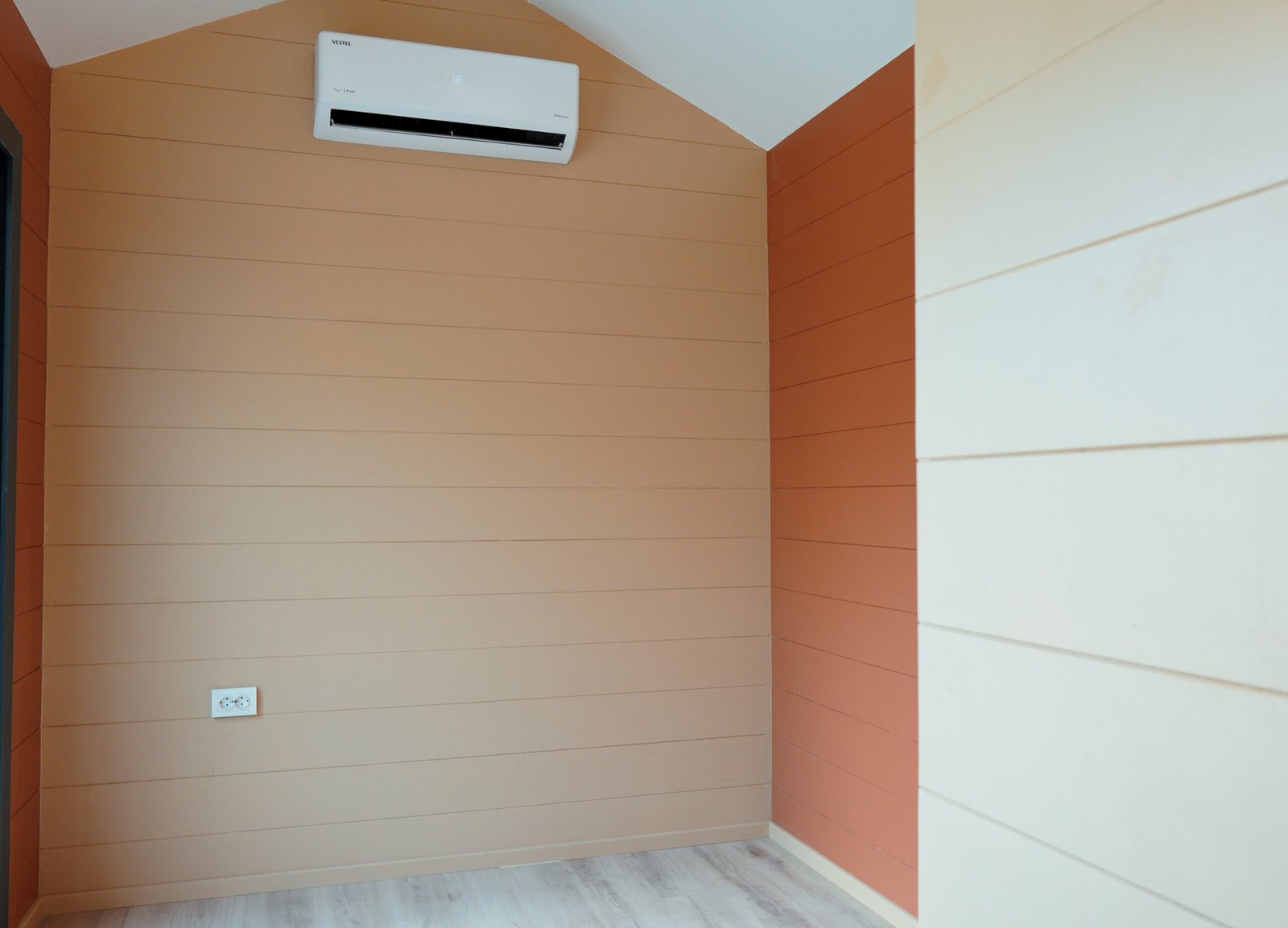

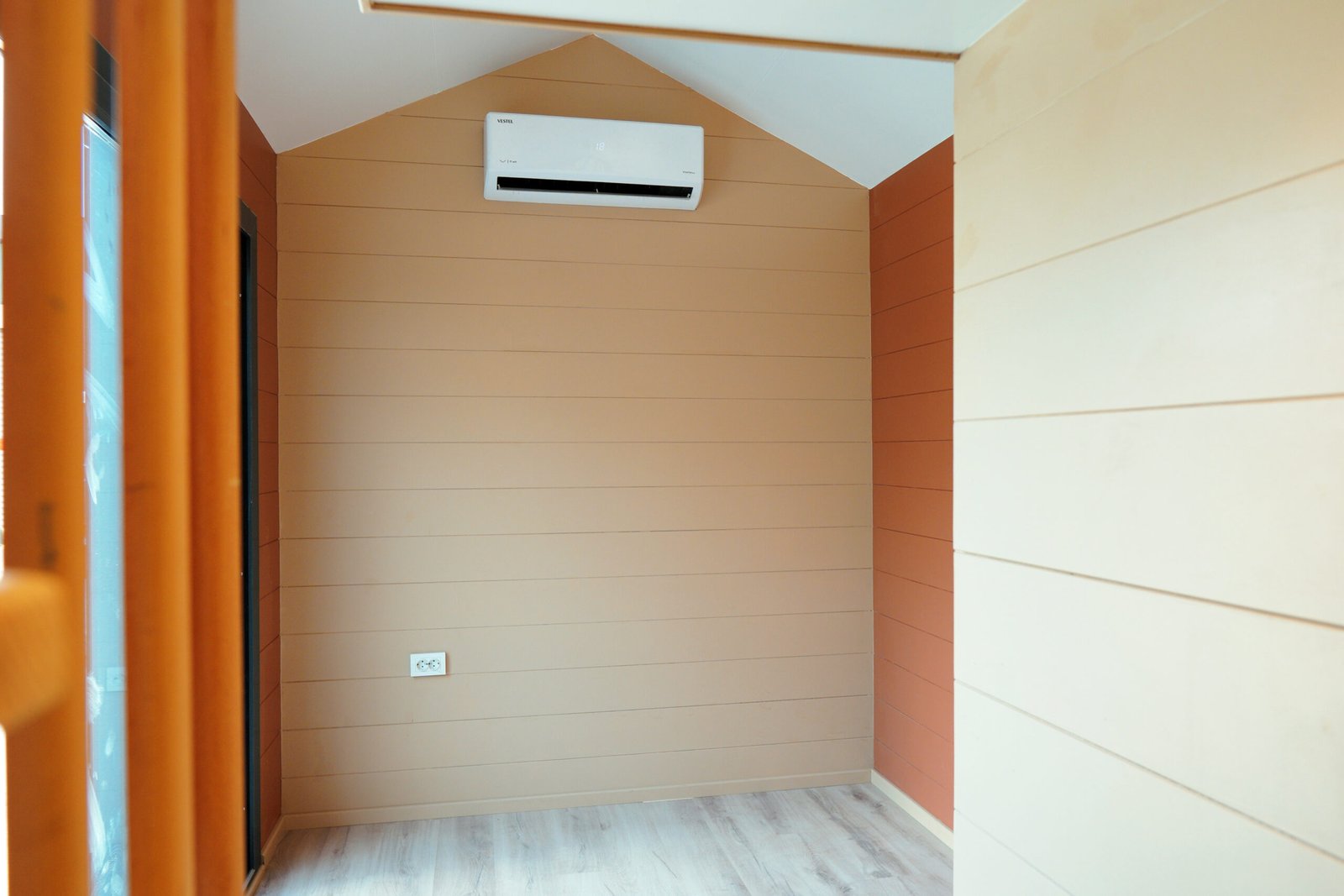

15. 1 AIR CONDITIONER WITH A POWER OF 9,000 BTU WILL BE INSTALLED BY US, AND THE ADDITIONAL AIR CONDITIONER AND THERMISOPHONEY WATER INFRASTRUCTURE WILL BE PREPARED ACCORDING TO THE PRODUCT THAT THE CUSTOMER WILL PURCHASE.
16. KAPRONE AND LAMINATE PARQUET ARE APPLIED ON THE PLYWOOD ON THE FLOOR.
17. JOINERY ARE INSTALLED WITH DOUBLE GLAZED GLAZING USING EGEPEN OR EQUIVALENT BRANDS. FLY SCREEN IS OPTIONAL.
18. THERE ARE 3 OR 4 SPOT LIGHTING ON THE EXTERIOR DEPENDING ON THE MODEL.
19. PATIO AND PERGOLE WORKS ARE OPTIONAL. PRICED ACCORDING TO THE DESIGN AND THE STRUCTURE OF THE LAND.
